Terrain Analysis Rendering Pipeline

This page covers the mechanism — how a *-protocol.ts file gets from an upstream raster-dem tile to a rendered layer. For what each mode means geomorphologically, see Terrain Visualization Modes; for the exact formulas, see Equations & Formulas.

Slope is the reference implementation, but the same pipeline shape covers Aspect, Curvature (and its Profile/Plan/Det-Hessian/Casorati/Shape-Index sub-modes), TRI, TPI, Roughness, Blobness (and its Eigen-Ratio/Orientation sub-modes), Sky-View Factor, Openness, and Local Dominance — eleven modes, three files' worth of shared plumbing, one formula each. LRM and the Lighting Effects modes (Matcap/Phong/Hard Shadows) genuinely diverge — see LRM and Lighting Effects.

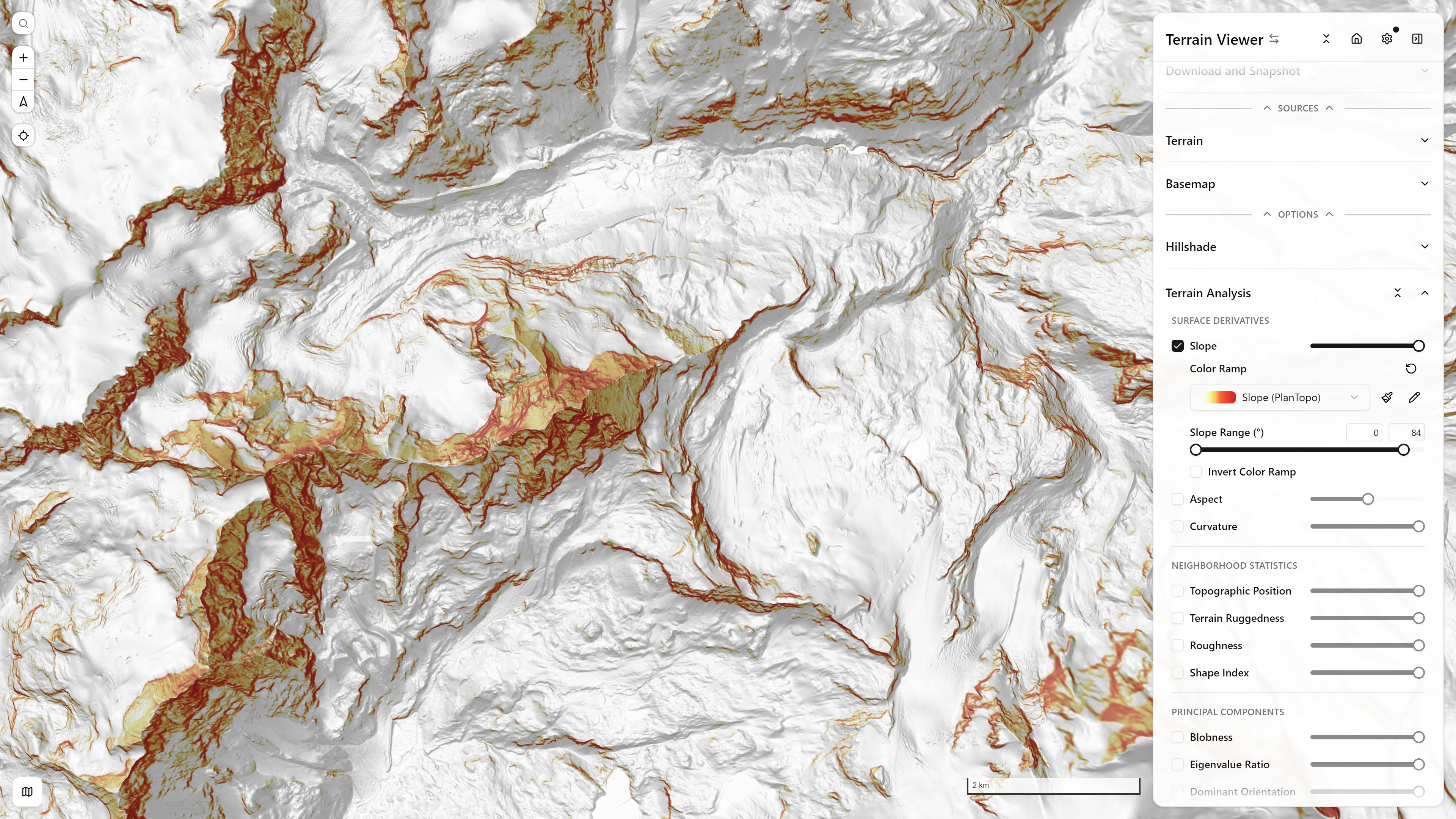

Slope + Hillshade backdrop — Matterhorn massif — open in app ↗

1. Source fetch

Each mode is a MapLibre custom protocol (slope://, aspect://, curvature://, tri://, tpi://, roughness://, blobness://, svf://, openness://, local-dominance://) whose tile URL embeds the upstream raster-dem tile template plus {z}/{x}/{y}. On a tile request, the handler fetches the center tile and its 8 same-zoom neighbors concurrently — needed so the kernel at a tile's edge pixels has real neighbor data rather than a clamped repeat. All of them (and Slope, Aspect, TRI, Curvature, TPI, Roughness, Normals, Matcap, Phong specifically) share one LRU sharedTileCache, so turning on several derived layers at once still decodes each upstream tile exactly once.

2. Decoding elevation

Each fetched tile's RGBA is decoded to a Float32Array using the upstream's encoding — either Terrarium or Mapbox Terrain-RGB (lib/elevation-encoding.ts):

3. Stitching a padded neighborhood grid

The 9 decoded tiles are stitched into one padded (n + 2·halo) × (n + 2·halo) grid, edge-replicated where a neighbor is missing (world edges, poles, a failed fetch). Most modes use halo = 1 — a plain 3×3 window (a0..a8, GDAL's row-major convention). Blobness uses halo = 2 (5×5) because its structure tensor needs a Horn gradient computed at each of the 9 sub-cells around the output pixel, not just once at the center. SVF/Openness/Local Dominance instead march rays outward up to a user-set search radius (see below), so their halo is that radius, not a fixed 1 or 2.

4. The kernel

• Slope, Aspect, TRI, TPI, Roughness, Curvature all reuse the same Horn 3×3 gradient (hornGradient() in lib/normal-derived-protocol.ts, ported from GDAL's GDALSlopeHornAlg), Mercator-corrected by cos(tileCenterLat) so the ground-distance denominator is real, not the nominal equator-only pixel size.
• Blobness / Eigen-Ratio / Orientation build a Förstner/Harris structure tensor from 9 Horn gradients (one per sub-cell of the 3×3 window) and read off det/trace, the eigenvalue ratio, or the principal eigenvector's axis.
• SVF / Openness / Local Dominance march outward in 8 compass directions (lib/horizon-angle.ts) rather than sampling a fixed-size window — see that file's own precision/performance tradeoffs (fixed 8 directions, integer-pixel steps, an optional "fast" power-of-two-radius approximation).

The exact per-mode formulas are on the Equations page; this page is about what happens to the result once it's computed.

5. Output encoding — the key architectural trick

The computed scalar is not rendered directly to RGBA color. It's re-packed as a pseudo-elevation, using the exact same byte-packing MapLibre's native raster-dem decoder already knows how to read, then PNG-encoded via OffscreenCanvas:

// lib/tri-protocol.ts (representative — every mode in this family ends the same way)
const [r, g, b, alpha] = elevationToTerrarium(computeValue(window))
outData[idx] = r; outData[idx + 1] = g; outData[idx + 2] = b; outData[idx + 3] = alpha

Slope uses Mapbox Terrain-RGB packing (base −10000, 0.1 unit step — plenty of precision for a 0–90° angle); every other mode uses Terrarium packing (~0.0039 step) because their values cluster near zero and would visibly band under Terrain-RGB's coarser step. Curvature additionally multiplies by an internal CURVATURE_ENCODE_SCALE = 1000 before encoding (undone when the raw value is read back for the UI/ramp bounds) purely to spread its small, near-zero-heavy range across more of Terrarium's discrete levels.

6. MapLibre consumption

The resulting PNG is added as an ordinary type: "raster-dem" <Source> — e.g. SlopeSource in components/LayersAndSources/MapSources.tsx:

<Source id="slopeSource" type="raster-dem" tiles={[url]} tileSize={256} encoding="mapbox" />

A type="color-relief" <Layer> (SlopeReliefLayer and its siblings in MapLayers.tsx) then reads that source through MapLibre's native ["elevation"] expression and a color-relief-color interpolate expression built from a ramp in lib/color-ramps.ts (slope-plantopo, tri-default, curvature-diverging, blobness-default, …):

<Layer id="color-relief" type="color-relief" source="hillshadeSource" paint={colorReliefPaint} />

So: the derivative value is smuggled through the raster-dem pixel format, and MapLibre's own color-relief machinery does the decode-and-color step. None of these protocol handlers hand-roll an RGBA colormap themselves — the same computeColorReliefPaint helper that colors real hypsometric elevation tint also colors slope degrees, curvature, TRI, and every other mode here, because to MapLibre they're indistinguishable from elevation.

7. Registration

Every protocol is registered once, at app init, in components/TerrainViewer.tsx:

maplibregl.addProtocol('slope', withTileResultCache(slopeProtocol))
maplibregl.addProtocol('tri', withTileResultCache(triProtocol))
maplibregl.addProtocol('svf', withTileResultCache(withSlowTileStats('svf', svfProtocol)))
// …one line per mode

withTileResultCache wraps the raw handler with its own result cache (on top of the shared decoded-tile cache from step 1); withSlowTileStats (SVF/Openness/Local Dominance only — the more expensive ray-marched modes) records timing for the app's internal perf instrumentation.

GPU acceleration — none here

Computation for all eleven modes on this page is pure CPU/JS on the main thread, per tile (OffscreenCanvas is used only for PNG encode/decode, not for compute). runWindowedProtocol/runNormalDerivedProtocol explicitly yield every YIELD_EVERY_ROWS rows so a burst of new tiles during a pan/zoom doesn't block input handling. The only GPU path in the codebase is computeNormalPixelsGPU (WebGL2), used exclusively by lib/normals-protocol.ts for the surface-normal computation that backs Matcap and Phong — see Lighting Effects.

Does this apply to Relief Visualization and Lighting too?

• Sky-View Factor, Openness, Local Dominance — yes, same output pipeline (step 5 onward). They just replace the fixed 3×3 kernel with the ray-marched horizon-angle core in lib/horizon-angle.ts (SVF/Openness) or a pyramid-sampled downward-angle average (Local Dominance, which borrows LRM's ancestor-tile trick for its far field — see LRM).
• LRM — no. It isn't a function of one same-zoom neighborhood at all; it subtracts a coarser pyramid ancestor tile from the fine tile. See the dedicated LRM page.
• Matcap, Phong, Hard Shadows — no. These start from a real (nx, ny, nz) surface normal (optionally GPU-computed) rather than a pseudo-elevation scalar, and matcap/phong end as plain type: "raster" (not raster-dem/color-relief) layers, with an additional live-WebGL fast path that bypasses the protocol/PNG round-trip entirely for parameter changes. See Lighting Effects.
