Split & Compare Modes
Off, Overlay, and Side — comparing terrain/basemap sources against each other

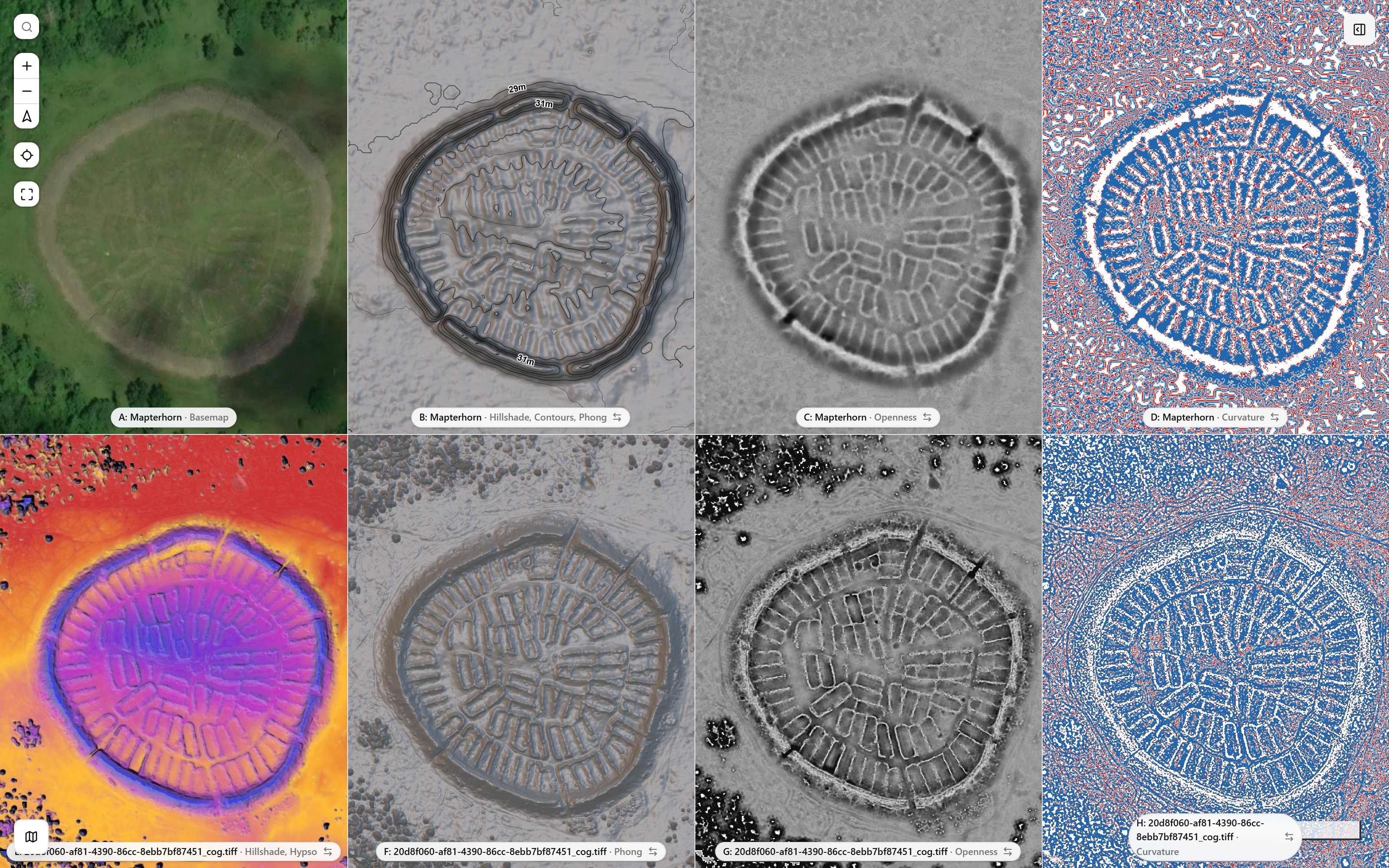

Split Mode (General Settings) controls how many "views" of the map are on screen and how they relate to each other. It's the same three-way choice in both Terrain and Historical Imagery mode, but Side behaves differently between them: a fixed 2×1 pane pair in Terrain mode, or any grid up to 4×2 (8 views, labeled A–H) in Historical mode.
Off, Overlay, and the Terrain-mode Side pane below all share the same tilted Matterhorn viewpoint (Mapterhorn vs. AWS Terrarium), so the three modes are directly comparable — same camera, same two terrain sources, just a different compare mechanic each time.
Off

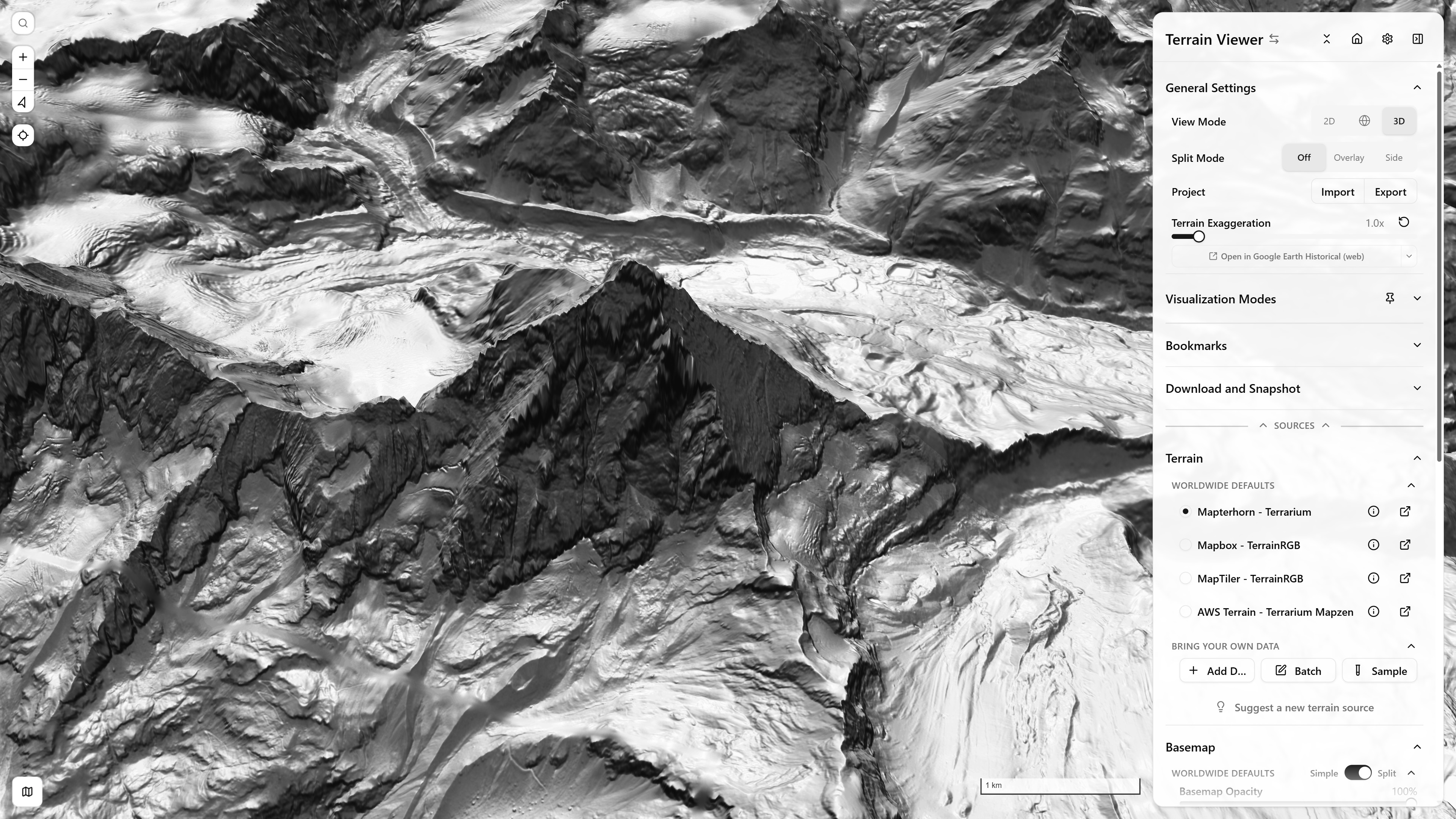

A single map view — the default. A plain tilted Hillshade on Mapterhorn's LiDAR-grade DEM over the Matterhorn massif, showing off the source's real resolution (ridgelines and rockfall texture that a coarser global DEM would smear away):
Split Mode: Off — pure Hillshade, tilted — Matterhorn massif — open in app ↗
Overlay

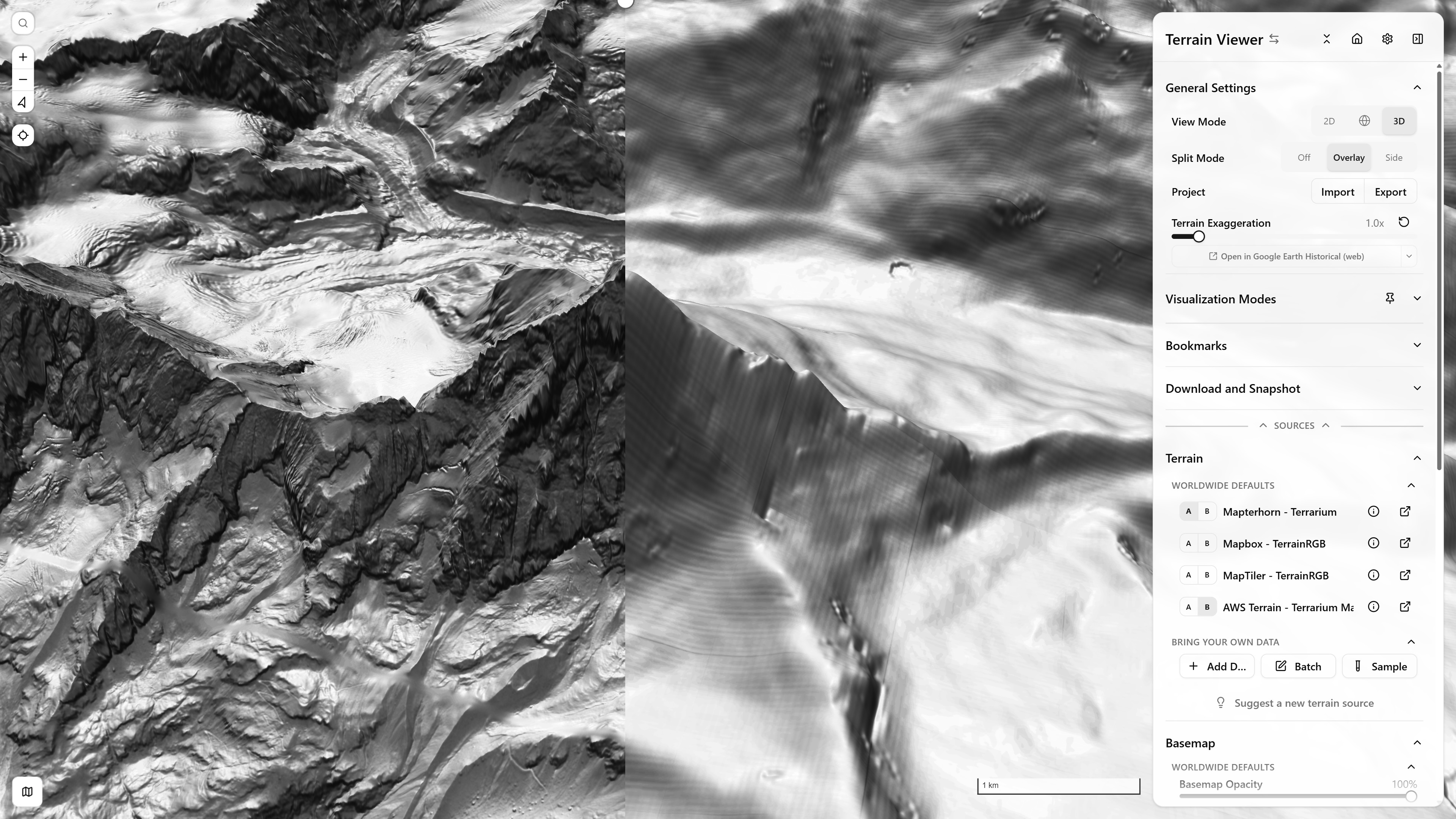

Two sources blended in place, with a draggable gutter (clip position) and a circular handle (blend opacity) directly on the map — see Bring Your Own Data and Terrain and Basemap Sources for what sourceA/sourceB can be. The gutter itself is centered on the space actually available left of the sidebar, not 50% of the full screen:
Split Mode: Overlay — Mapterhorn vs. AWS Terrarium terrain, 100% — Matterhorn massif — open in app ↗
Side

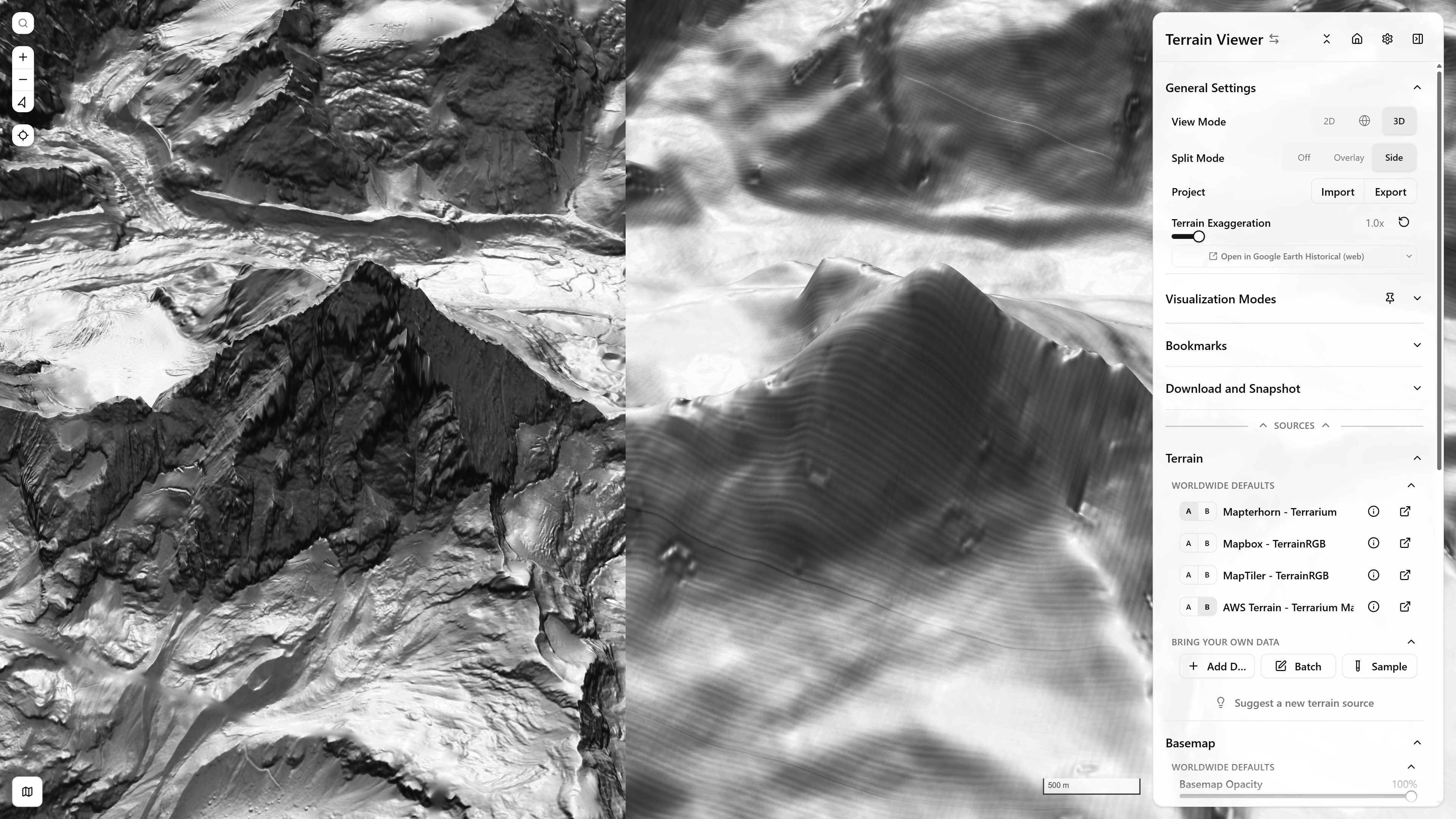

Terrain mode is always a fixed 2×1 pane pair — compare two terrain or basemap sources directly. Same Mapterhorn-vs-AWS pair and viewpoint as Off/Overlay above, this time as two independent panes rather than a blend:
Split Mode: Side (terrain, 2×1) — Mapterhorn vs. AWS Terrarium terrain — Matterhorn massif — open in app ↗

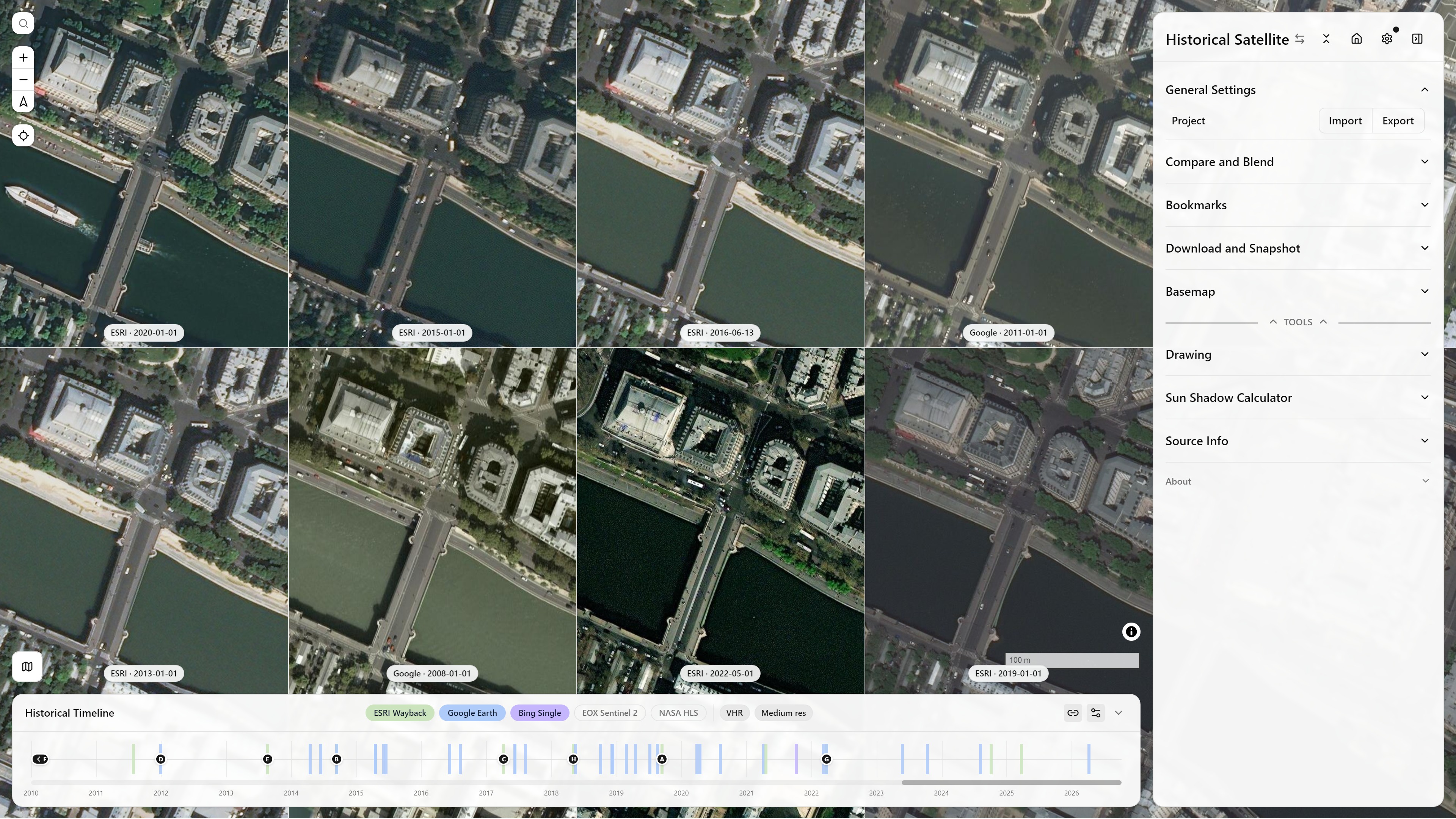

Historical Imagery mode can grow to any grid up to 4×2 (8 views) — see Basemaps & Historical Imagery for the grid picker and timeline. Each view gets its own basemap source, capture date, and a colored border matching its handle on the timeline. Zoomed in tight on Île de la Cité and the Seine, the difference between providers is obvious: Wayback panes stay crisp, while the Google Earth Historical panes fall back to a much coarser, irregularly-resampled capture (visible as flat color blocks rather than actual imagery) for that date/location:
Split Mode: Side (historical, 4×2) — 8 views mixing ESRI Wayback and Google Earth Historical across different capture dates — Île de la Cité, Paris, France — open in app ↗

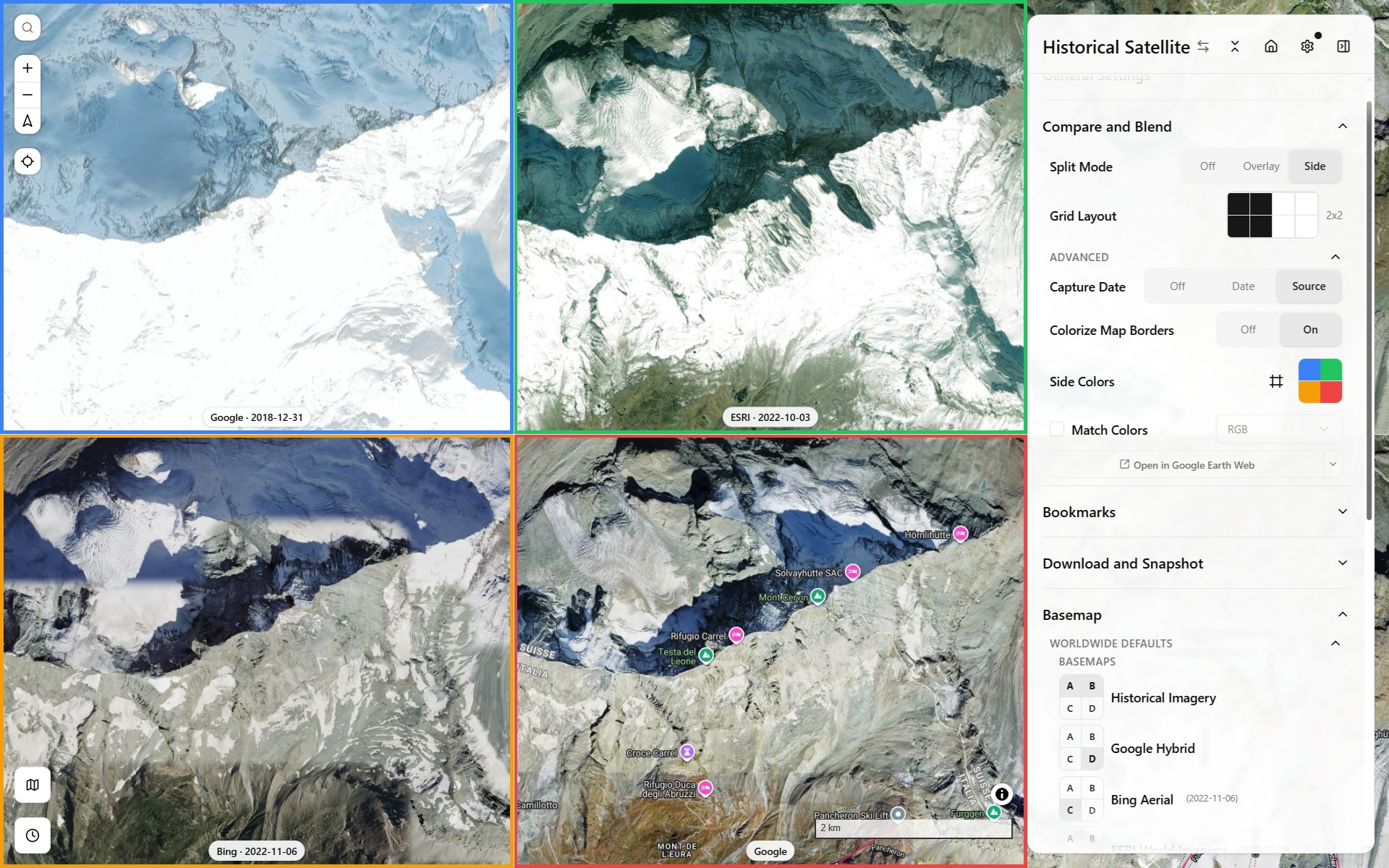

A smaller, 2×2 example comparing basemap sources:
Split Mode: Side (historical grid) — comparing basemap sources
Historical Split & Compare Blend Modes

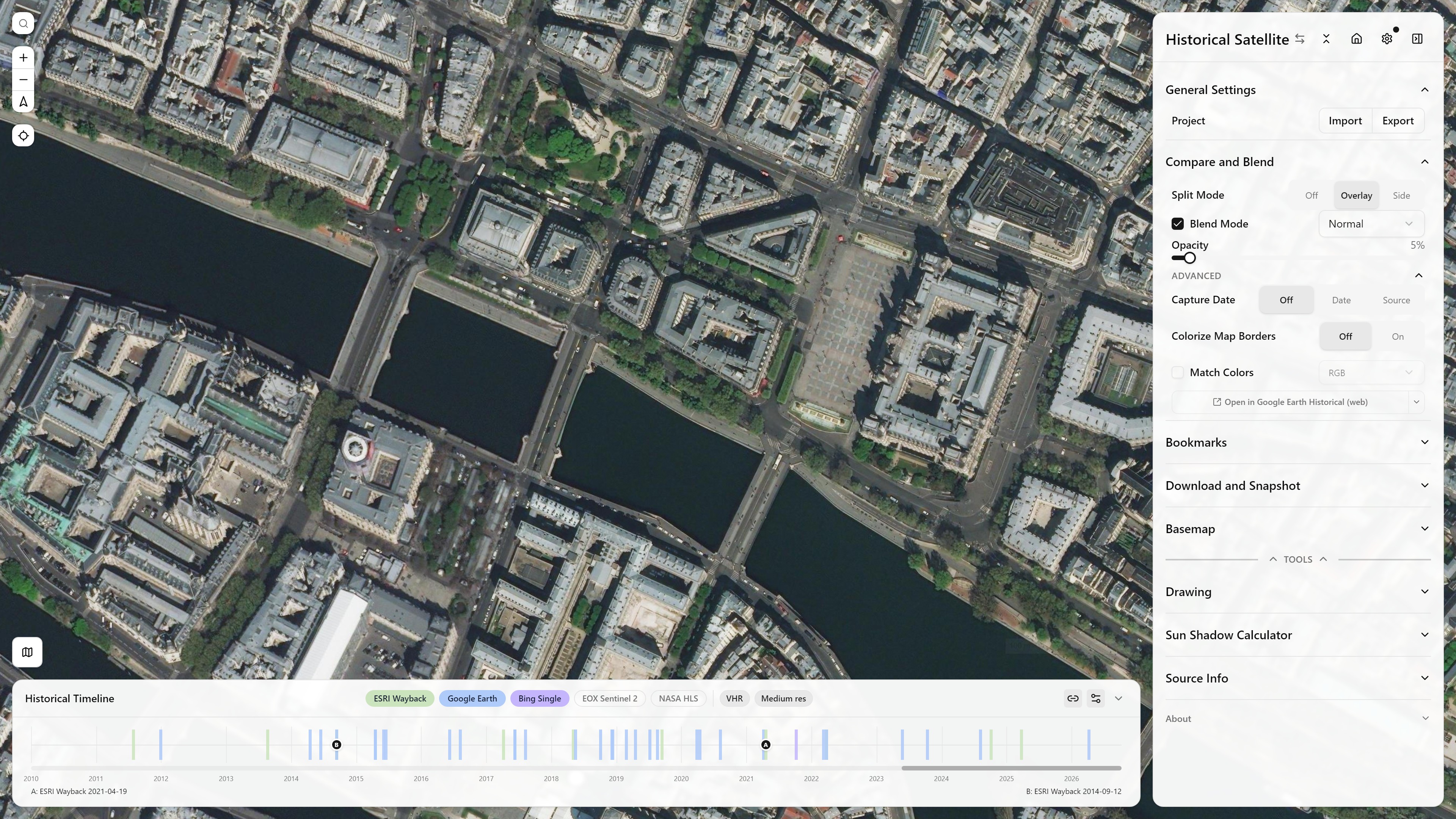

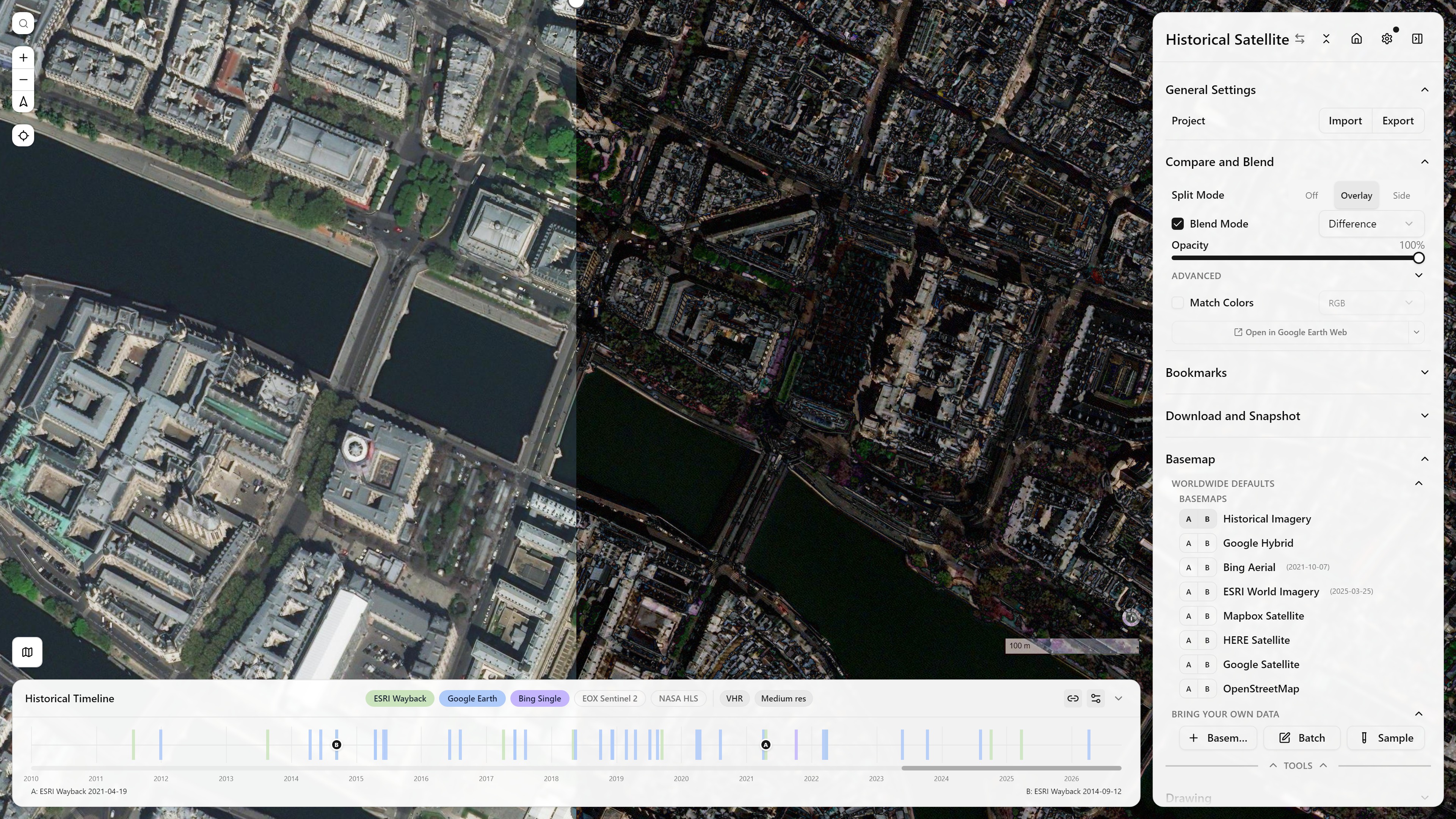

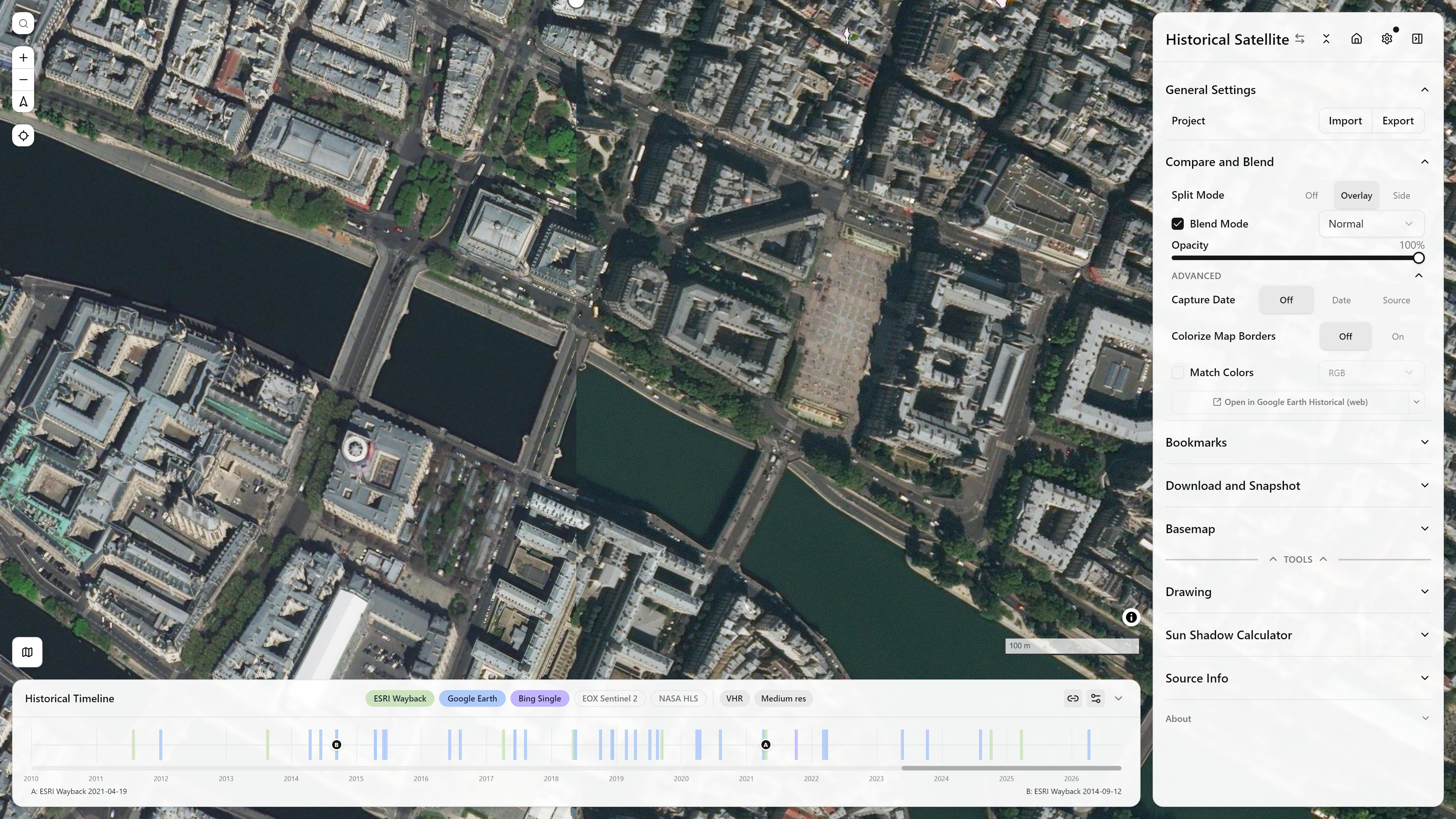

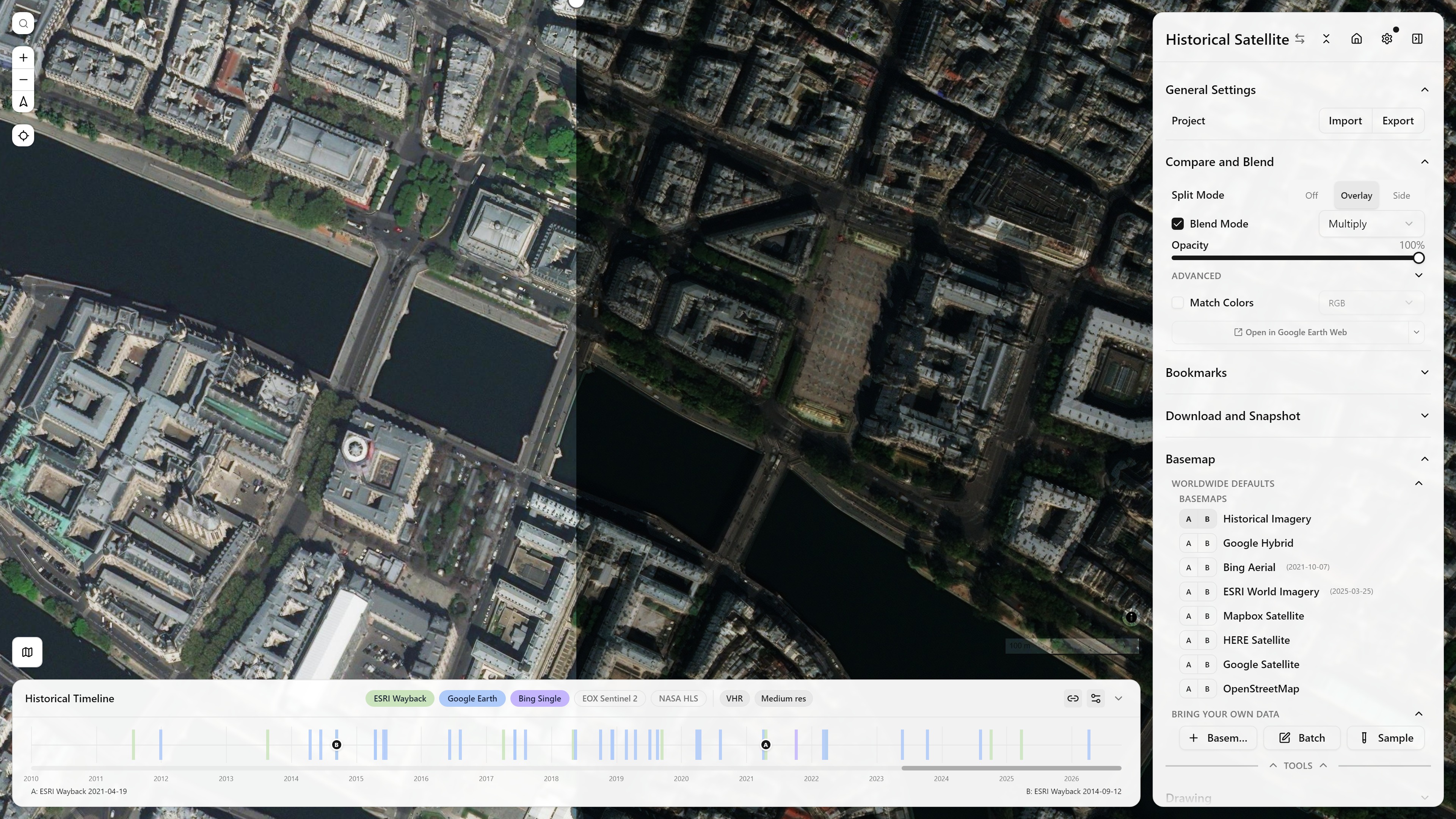

Overlay mode's Blend Mode dropdown controls how source A composites over source B — beyond the default Normal (opacity-only cross-fade), Multiply and Difference make change between two dates easier to spot at a glance. All four below compare the same two ESRI Wayback captures of Île de la Cité (2021 vs. 2015), Normal shown at both a near-total 100% and a near-invisible 5% to show the opacity slider's full range:
Color Matching (Match Colors)
Match Colors (Compare and Blend, historical mode) automatically recolors every other view onto view A's color histogram, so two different imagery sources — or two different dates of the same source — no longer look noticeably darker/bluer/warmer next to each other when compared or blended. A Color Space picker controls how thorough the match is: RGB (the default) is instant, while HSL / HSV / LAB / LCH are slower but can match more subtle color differences.

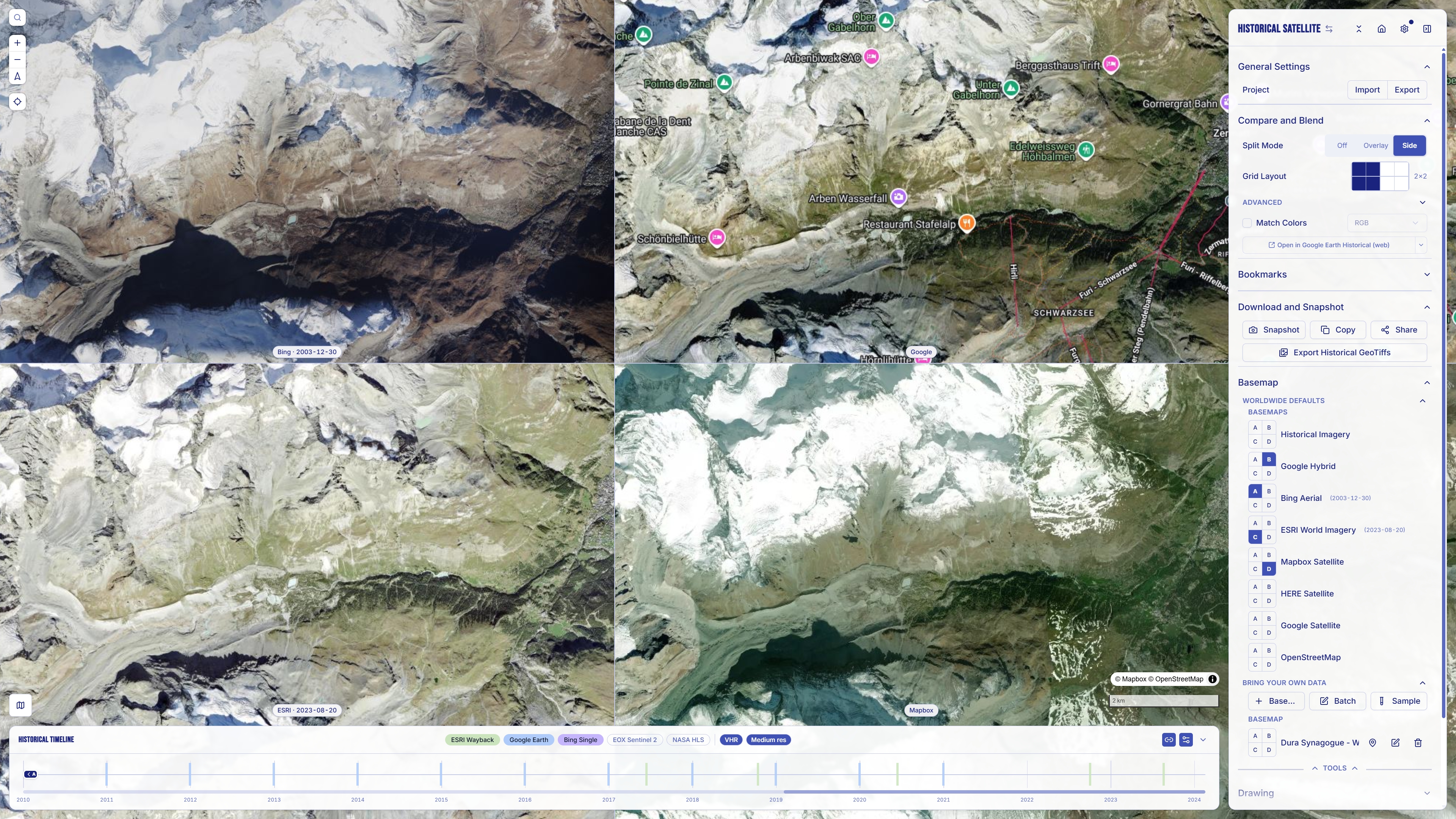

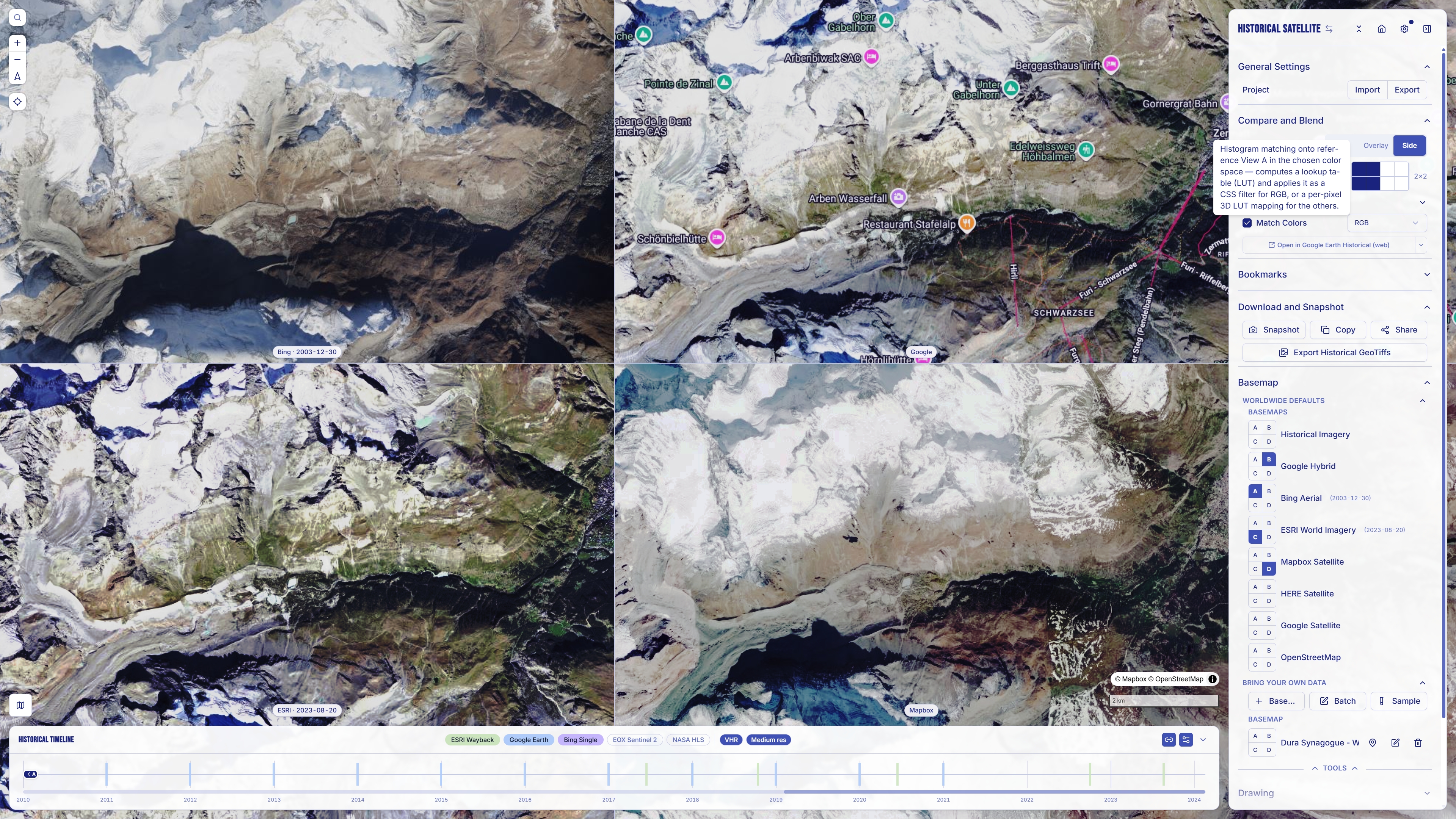

The same 2×2 grid over Zermatt (Bing Aerial 2003, Google Hybrid, ESRI World Imagery 2023, Mapbox Satellite), with and without Match Colors — with it on, views B–D take on view A's warmer 2003 Bing palette instead of each keeping their own look:
In the default RGB space, the match works by computing a Look-Up Table that maps the target's per-channel Cumulative Density Function (sampled from a subsampled 96×96 copy of its canvas) onto the reference's CDF, then applying that LUT as a live CSS SVG filter — an feComponentTransfer — on the target map's canvas. See the full pipeline in the folded details block below.
Under the hood (HistogramMatchFilter, one instance per non-A view), both color-space paths share the same sampling front-end, then diverge in how the correction is computed and applied.
Shared front-end — sample what's actually on screen. The reference (view A) and target canvases are each drawn downscaled onto a small 96×96 offscreen canvas and read back with getImageData — so the match is always based on the tiles currently rendered in the viewport, not the raw source imagery. It re-samples whenever either map settles (on idle), debounced to at most once per second, so the correction tracks whatever loads as you pan and zoom.
RGB — a live CSS filter, zero pixels touched:
- Build a per-channel 256-entry LUT. Independently for R, G, and B, the target sample's cumulative distribution is mapped onto the reference's (exact empirical-CDF histogram matching, scikit-image style) — yielding three lookup tables of 256 output values each.
- Serialize the LUT into the filter. Each LUT is turned into a space-separated string of 256 values normalized to 0–1 and written into the
tableValuesattribute of<feFuncR/G/B type="table">inside anfeComponentTransfer, in a hidden 0×0<svg><filter>the component renders. The filter is declaredcolorInterpolationFilters="sRGB"so the tables operate on sRGB values, not linearized ones. - Attach it via CSS.
targetCanvas.style.filter = "url(#histogram-match-to-reference-<id>)"— the GPU composites the correction every frame for free and the live map stays fully interactive. Updating the match later just means rewriting thetableValuesattributes; the referenced filter re-applies automatically.
The last serialized LUT strings are also remembered across a disable — so toggling Match Colors back on re-attaches the filter synchronously (stale by at most one recompute interval, the same staleness the live filter already tolerates between idle recomputes) instead of sitting visually uncorrected through the one-second debounce.
HSL / HSV / LAB / LCH — a real per-pixel conversion. feComponentTransfer can only remap raw R/G/B output, so these spaces can't be expressed as a CSS filter: instead, actual pixels are converted through a 3D LUT over the chosen color space and drawn onto a static overlay canvas stacked above the live map, at the target's own native resolution (the LUT is what makes that affordable — roughly 100–400ms even at high-DPI fullscreen, where a naive per-pixel conversion took 0.5–0.9s). Because the overlay is a snapshot, it hides itself the moment either map starts moving — motion feedback beats color accuracy mid-gesture — and fades back in once the next recompute lands.
The algorithm is ported from Iconem/historical-satellite's standalone histogram-matching demo, vendored in this repo for reference.
